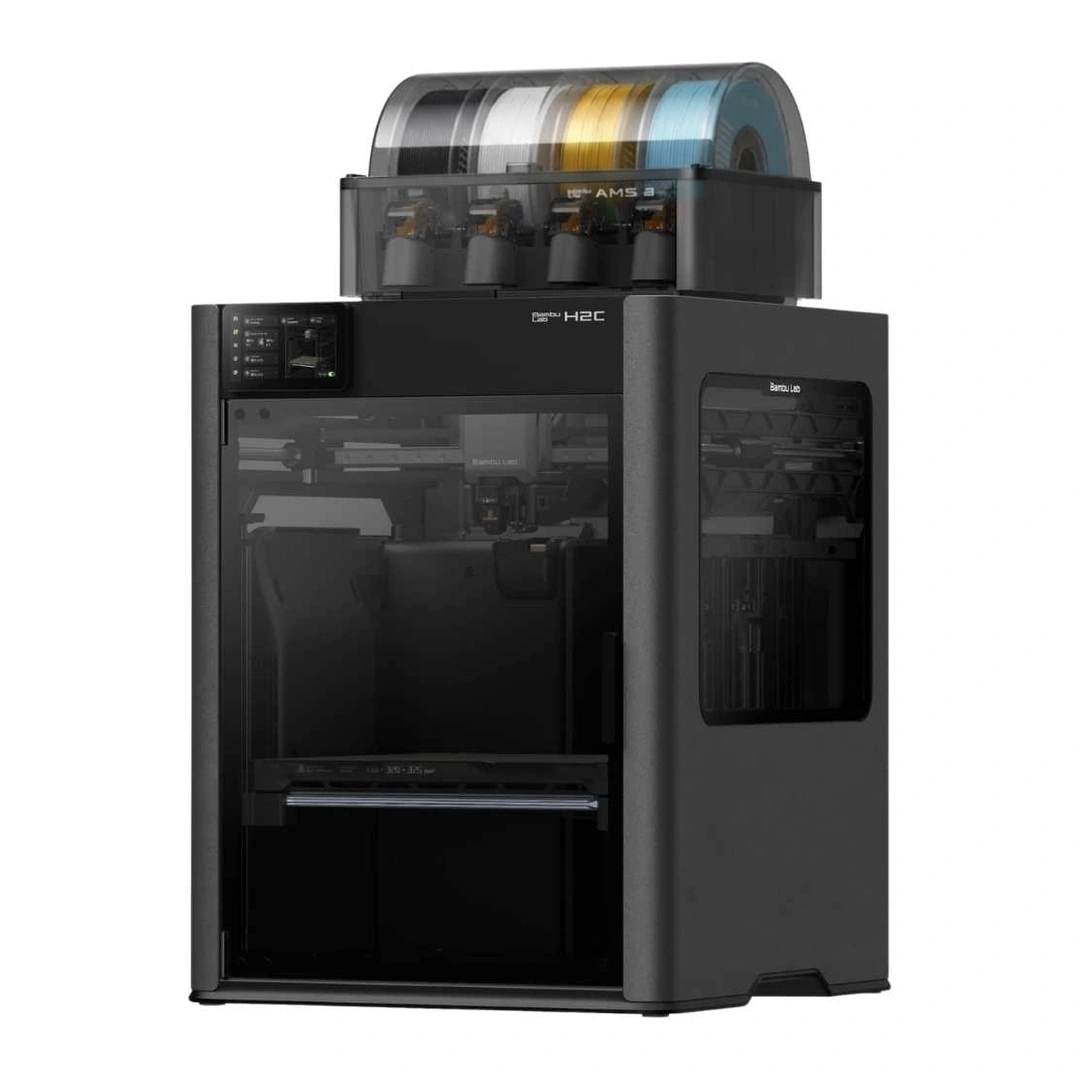

Bambu Lab H2C Combo
-21% Original price was: 2.785,71 €.2.203,17 €Current price is: 2.203,17 €.
- Vortek multi-color and multi-material 3D printing
- Up to 7 dedicated material paths with near-zero purge waste
- 330×320×325 mm total printable volume
- Up to 1000 mm/s speed & 20,000 mm/s² acceleration
- 350°C nozzles, 120°C heated bed & 65°C active heated chamber
- Closed-loop PMSM servo extrusion system
- Hardened steel nozzles for advanced and reinforced materials
- 59 sensors & 3-camera AI print monitoring
- AMS 2 Pro and 8 hotends included
- Optional Vision Encoder and laser modules not included
-21% Original price was: 2.785,71 €.2.203,17 €Current price is: 2.203,17 €.
Currently out of stock
100% RISK FREE PURCHASE
FREE SHIPPING OVER 100€
Makers cought making cool stuff with Azurefilm
Bambu Lab H2C Combo – Multi-material printing with far less waste
The Bambu Lab H2C Combo brings the Vortek Hotend Change System to the large-format H Series platform. One fixed left hotend works alongside up to six interchangeable induction hotends, allowing as many as seven materials to remain assigned to dedicated hotends and dramatically reducing the purging normally required during color and material changes.
With a total printable volume of 330×320×325 mm, the H2C is built for large, complex multi-material prints without the time and filament waste of repeated nozzle flushing.
Built for precision, demanding materials and automation
The H2C reaches toolhead speeds of up to 1000 mm/s with 20,000 mm/s² acceleration, while automatic calibration keeps the standard and interchangeable hotends accurately aligned. An optional Vision Encoder can further improve motion accuracy to below 50 μm.
A 350°C maximum nozzle temperature, 120°C heated bed and 65°C actively heated chamber provide the controlled environment needed for ABS, ASA, nylon, PC, PPS and fiber-reinforced materials. Its filtration system combines a G3 pre-filter, H12 HEPA filter and activated carbon.
Throughout each print, 59 sensors and three standard cameras monitor the machine, extrusion process and build area. The included AMS 2 Pro adds automatic filament management and active drying, while laser engraving and cutting require separate compatible hardware.
Key features

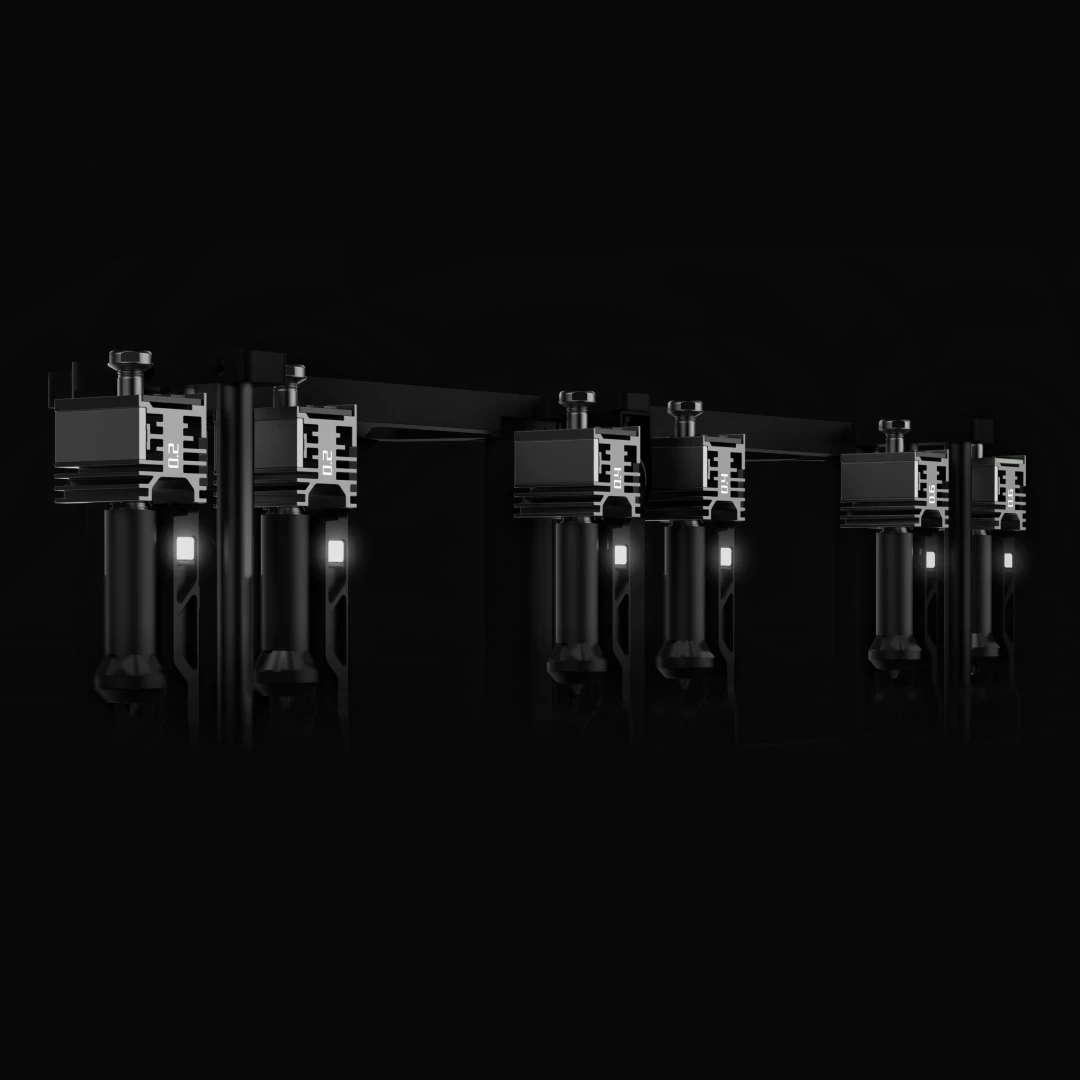

Vortek Hotend Change System
Up to seven dedicated materials with interchangeable hotends.

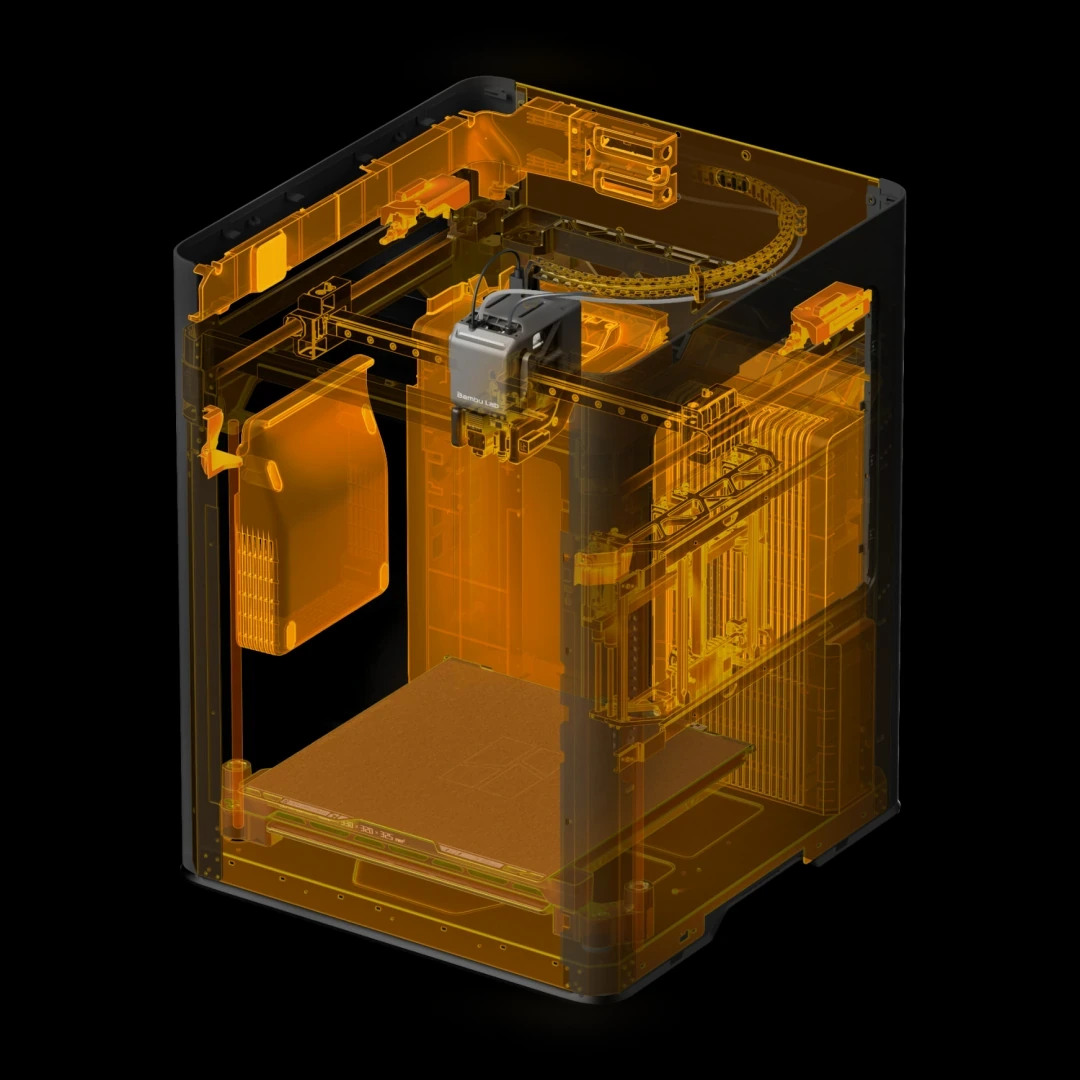

330×320×325 mm print volume
More room for large models, multi-material parts and batches.

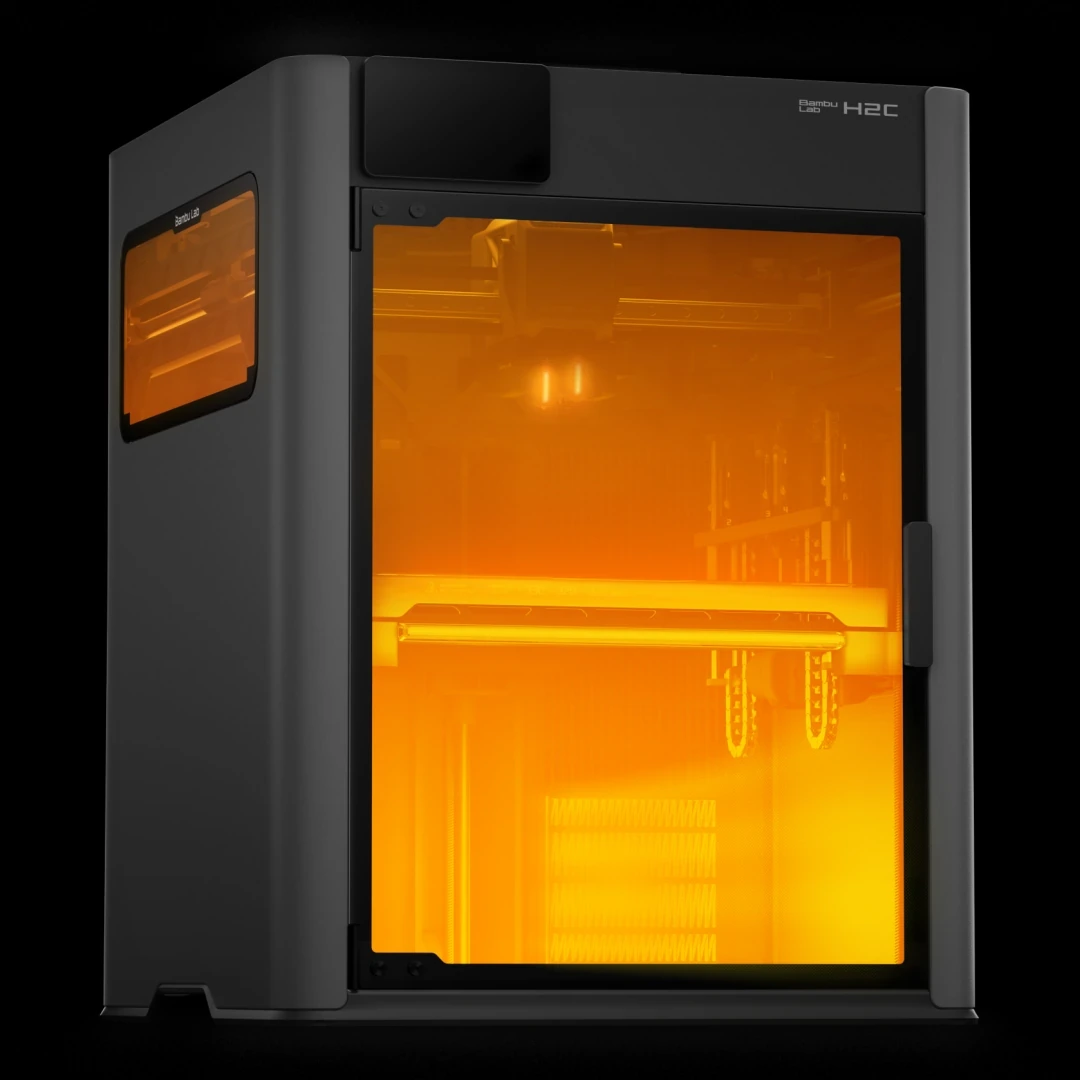

65°C active heated chamber
Stable heat for ABS, ASA, nylon and other warp-sensitive materials.
AMS 2 Pro included
Automatic filament management and active drying for four spools.
Technical Specifications
Printer
|
PRINTING TECHNOLOGY |
Fused Deposition Modeling (FDM) |
|
LEFT HOTEND BUILD VOLUME |
325×320×320 mm³ |
|
RIGHT HOTEND BUILD VOLUME |
305×320×325 mm³ |
|
DUAL-HOTEND BUILD VOLUME |
300×320×320 mm³ |
|
TOTAL PRINTABLE VOLUME FOR TWO HOTENDS |
330×320×325 mm³ |
|
PHYSICAL DIMENSIONS |
492×514×626 mm³ |
|
RECOMMENDED OPERATING SPACE |
700×700×1100 mm³ |
|
NET WEIGHT |
32.5 kg |
|
CHASSIS |
Aluminum and steel |
|
OUTER FRAME |
Plastic and glass |
Vortek & Extrusion System
|
HOTEND SYSTEM |
Vortek Hotend Change System |
|
HOTEND ARRANGEMENT |
1 standard left hotend + up to 6 interchangeable right induction hotends |
|
MAX NOZZLE TEMPERATURE |
350°C |
|
SUPPORTED NOZZLE DIAMETERS |
0.2 / 0.4 / 0.6 / 0.8 mm |
|
FILAMENT DIAMETER |
1.75 mm |
|
EXTRUDER MOTOR |
Bambu Lab high-precision permanent magnet synchronous motor |
|
MAX SYSTEM HOTEND FLOW |
40 mm³/s |
|
FILAMENT CUTTER |
Built-in |
|
INCLUDED HOTENDS |
8 total |
|
INCLUDED RIGHT INDUCTION HOTENDS |
4×0.4 mm hardened steel, 1×0.2 mm stainless steel, 1×0.6 mm hardened steel |
|
INCLUDED LEFT STANDARD HOTENDS |
2×0.4 mm hardened steel |
Motion & Temperature
|
MOTION SYSTEM |
CoreXY |
|
MAX TOOLHEAD SPEED |
1000 mm/s |
|
MAX TOOLHEAD ACCELERATION |
20,000 mm/s² |
|
MAX HEATBED TEMPERATURE |
120°C |
|
ACTIVE CHAMBER HEATING |
Supported |
|
MAX CHAMBER TEMPERATURE |
65°C |
|
INCLUDED BUILD PLATE |
Textured PEI Plate |
|
SUPPORTED BUILD PLATES |
Textured PEI Plate, Engineering Plate |
Airflow & Filtration
|
PRE-FILTER GRADE |
G3 |
|
HEPA FILTER GRADE |
H12 |
|
ACTIVATED CARBON FILTER |
Granulated coconut-shell activated carbon |
|
VOC FILTRATION |
Supported |
|
PARTICULATE MATTER FILTRATION |
Supported |
|
ACTIVE CHAMBER TEMPERATURE CONTROL |
Supported |
|
CLOSED-LOOP FAN CONTROL |
Supported |
Materials
|
STANDARD FILAMENTS |
PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS |
|
REINFORCED FILAMENTS |
Carbon- or glass-fiber-reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA and PPS |
|
FILAMENT DIAMETER |
1.75 mm |
Cameras & Monitoring
|
LIVE VIEW CAMERA |
Built-in, 1920×1080 |
|
NOZZLE CAMERA |
Built-in, 1920×1080 |
|
TOOLHEAD CAMERA |
Built-in, 1600×1200 |
|
BIRDSEYE CAMERA |
3264×2448, Laser Edition only |
|
STANDARD AMS COMBO CAMERA COUNT |
3 |
|
SENSOR SYSTEM |
59 sensors |
|
AI PRINT MONITORING |
Supported |
|
DOOR SENSOR |
Supported |
|
FILAMENT RUN-OUT SENSOR |
Supported |
|
FILAMENT TANGLE SENSOR |
Supported |
|
FILAMENT ODOMETRY |
Supported with AMS |
|
POWER-LOSS RECOVERY |
Supported |
Electronics & Connectivity
|
VOLTAGE |
100–120 VAC / 200–240 VAC, 50/60 Hz |
|
MAX POWER |
1800 W @ 220 V / 1250 W @ 110 V |
|
TYPICAL PLA PRINTING POWER |
200 W |
|
WORKING TEMPERATURE |
10°C–30°C |
|
TOUCHSCREEN |
5-inch, 720×1280 |
|
STORAGE |
Built-in 8 GB eMMC and USB port |
|
CONTROL INTERFACE |
Touchscreen, mobile app and PC app |
|
WIRELESS NETWORK |
Wi-Fi |
|
WI-FI PROTOCOL |
IEEE 802.11 a/b/g/n |
|
ETHERNET |
Not available |
|
LAN-ONLY OPERATION |
Supported |
AMS 2 Pro
|
AMS INCLUDED |
1× AMS 2 Pro |
|
FILAMENT SLOTS |
4 |
|
ACTIVE FILAMENT DRYING |
Supported |
|
MAX DRYING TEMPERATURE |
65°C |
|
AIRTIGHT FILAMENT STORAGE |
Supported |
|
AUTOMATIC SPOOL ROTATION DURING DRYING |
Supported |
|
MAXIMUM SYSTEM EXPANSION |
Up to 4 AMS 2 Pro and 8 AMS HT units |
|
MAXIMUM CONNECTED FILAMENT SLOTS |
24 |
Over 10.000.000 filaments produced and sold
Better prints start with the right filament
Get more from your new 3D printer with AzureFilm filaments, developed for reliable extrusion, consistent color and repeatable print quality.
Choose from easy-to-print PLA and PETG, durable ABS and ASA, flexible materials and advanced fiber-reinforced filaments. Whether you are printing at standard or high speeds, you will find a material for everyday models, detailed designs and demanding functional parts.
Save with a BUNDLE
Pair your new 3D printer with a carefully selected AzureFilm filament bundle and save compared to purchasing each product separately.
Our bundles make it easier to choose compatible materials, stock up for your first projects and start printing as soon as your printer arrives. One order, better value and no need to search for filament separately.
Compatible with

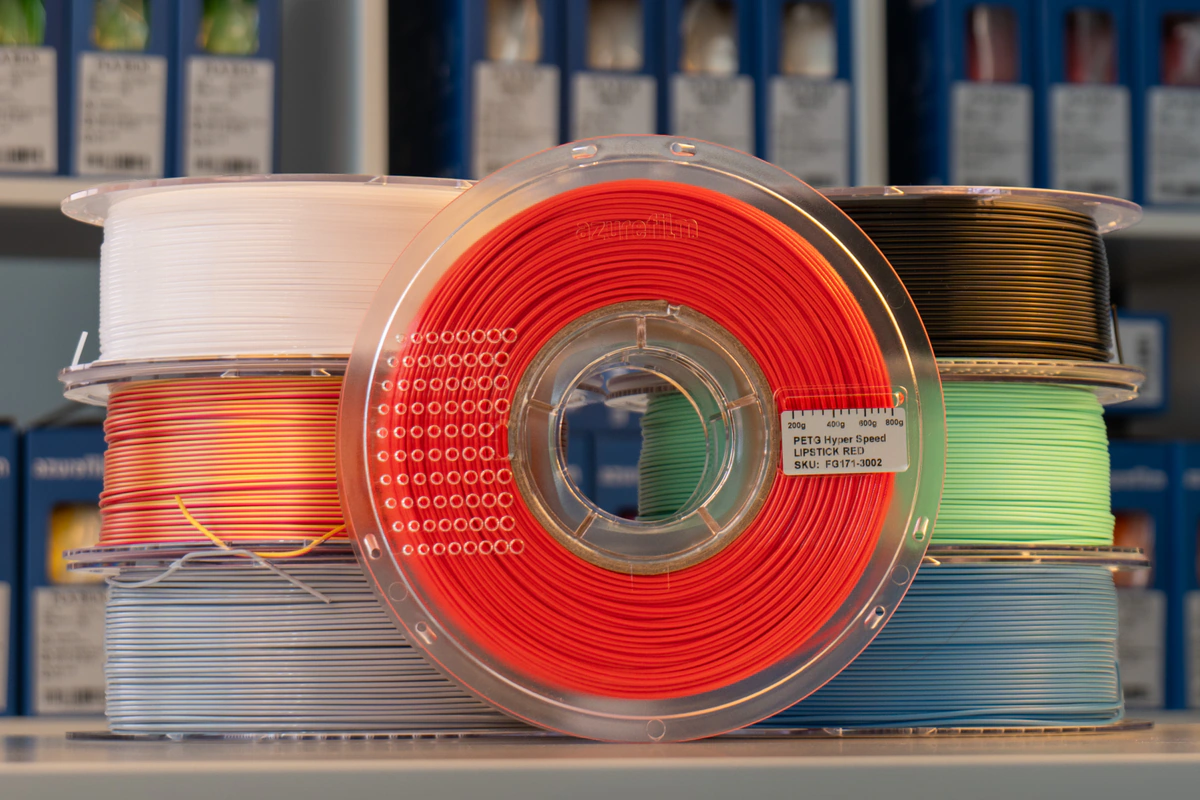

REFILLS. Simple. Compatible. Sustainable.

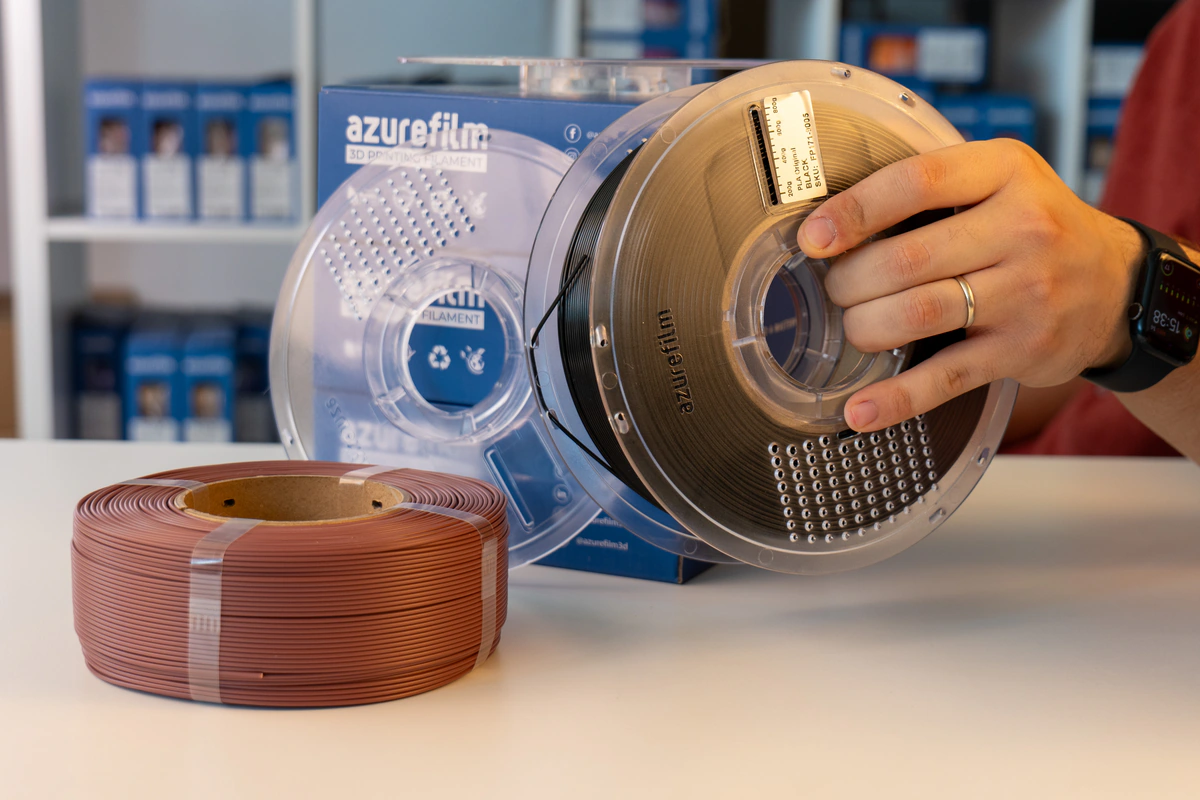

All our filaments are perfectly compatible with the AzureFilm Master Spool – the only spool you’ll ever need. By using this reusable spool, you can join us in reducing waste and minimising environmental impact.
AzureFilm Master Spool is our reusable spool, which provides a sustainable and cost-effective solution for 3D printing. The spool is a set of two reusable, injection-molded discs. This ensures the high durability and precision of the spool.
Start printing in just 3 simple steps:

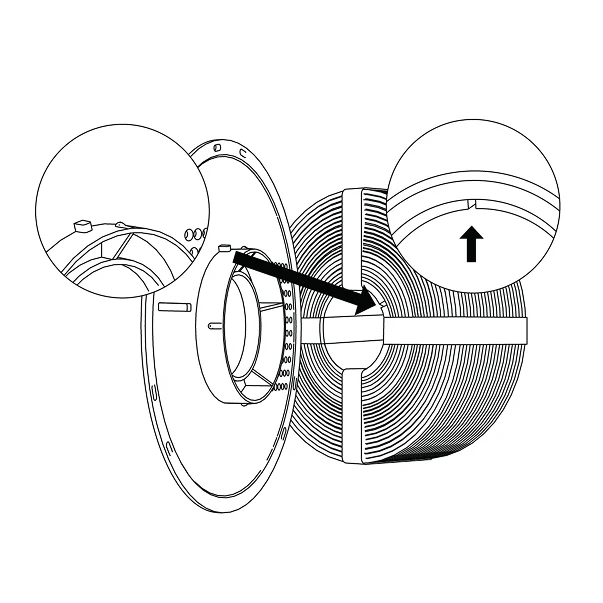

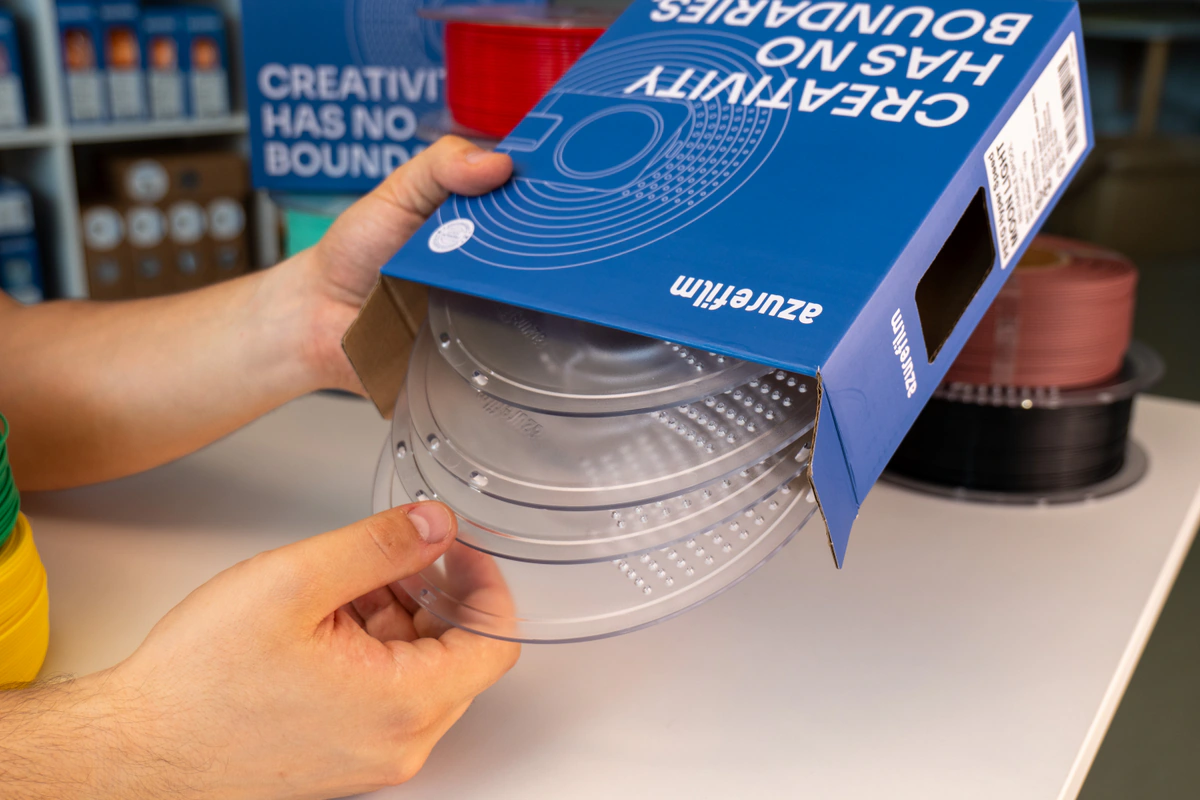

1. Unbox:
Unbox a set of two highly durable and reusable discs.

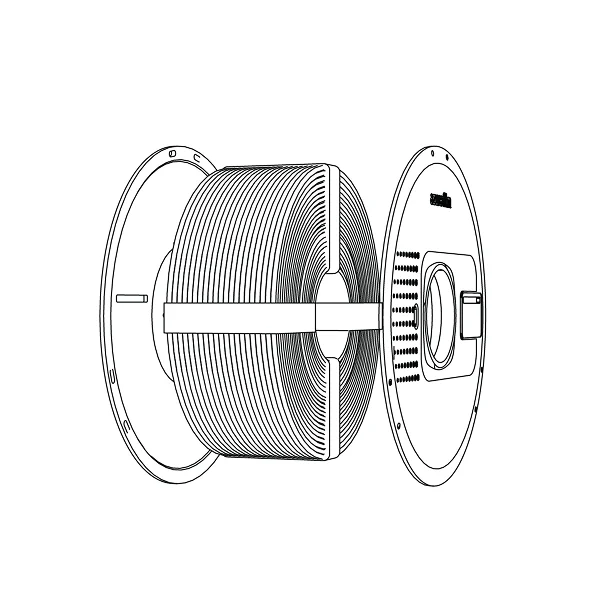

2. Install:
Align the discs with the rectangular hole and press down on both sides.

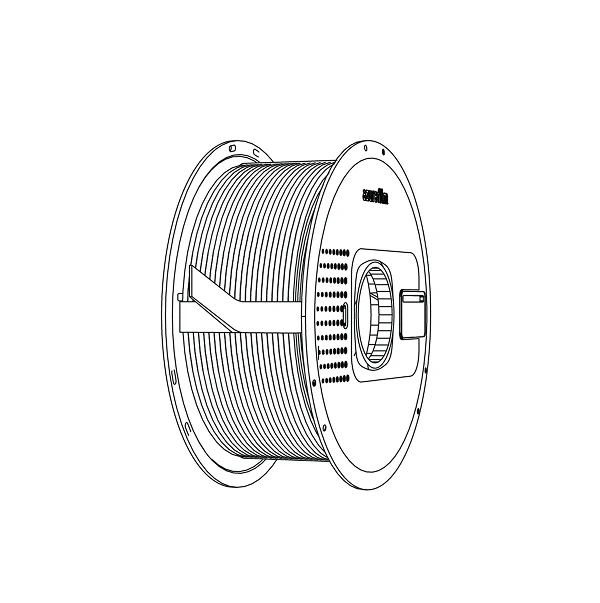

3. Enjoy:
